DESCRIZIONE
Telaio
telaio C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
misura S, M, L, XL
Sospensione
viteria ammortizzatore Front: 30x8mm, Rear: DU-Bushing 12.7mm

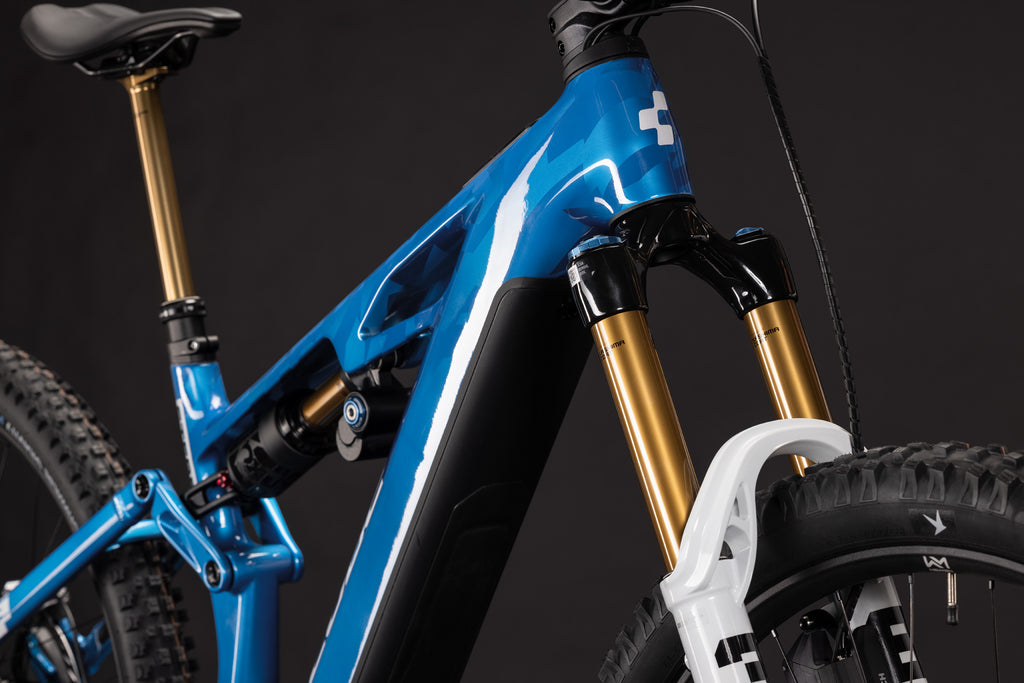

forcella ammortizzata Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm

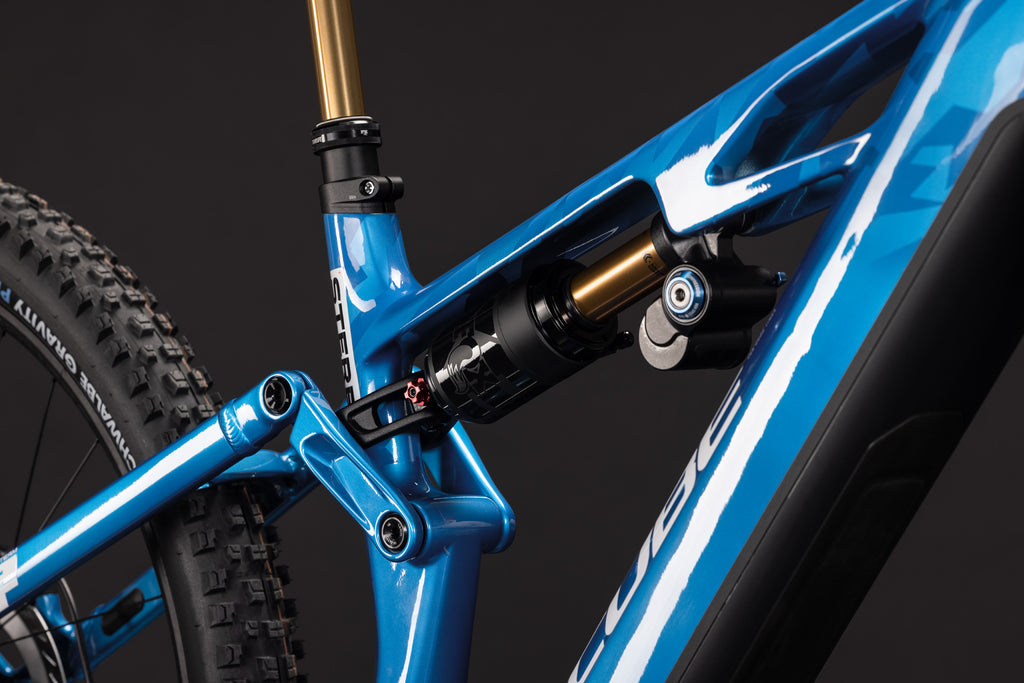

ammortizzatore Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
Sistema e-bike
Tecnologia ABS Bosch ABS Pro
motore Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
Remoto Bosch Mini Remote
batteria Bosch PowerTube 800

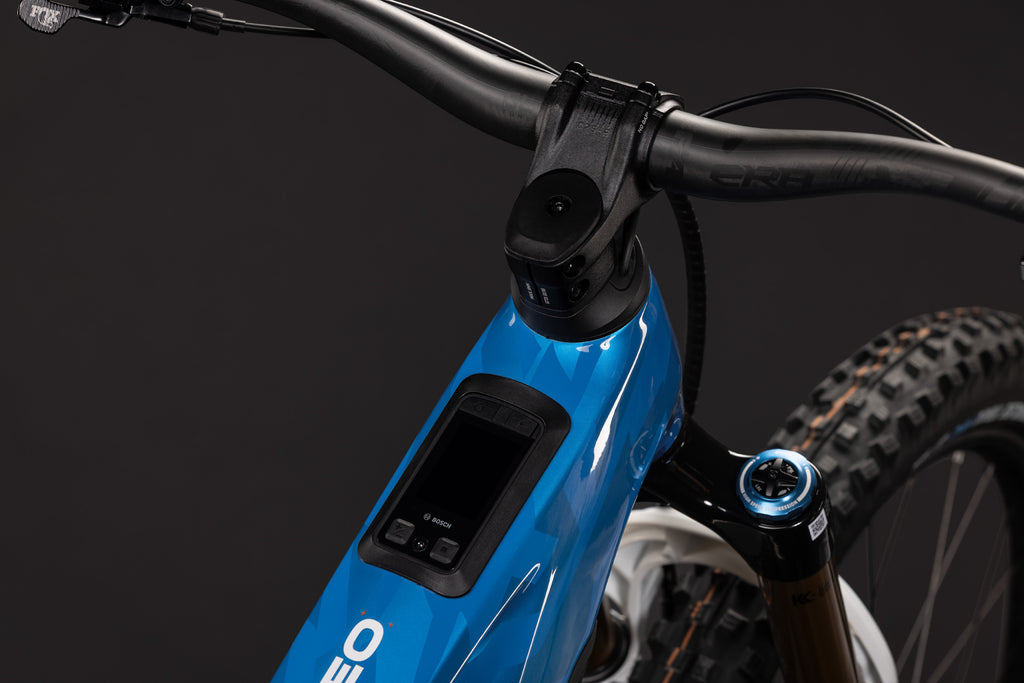

display Bosch Kiox 400C
caricatore Bosch 4A
Trasmissione e freni

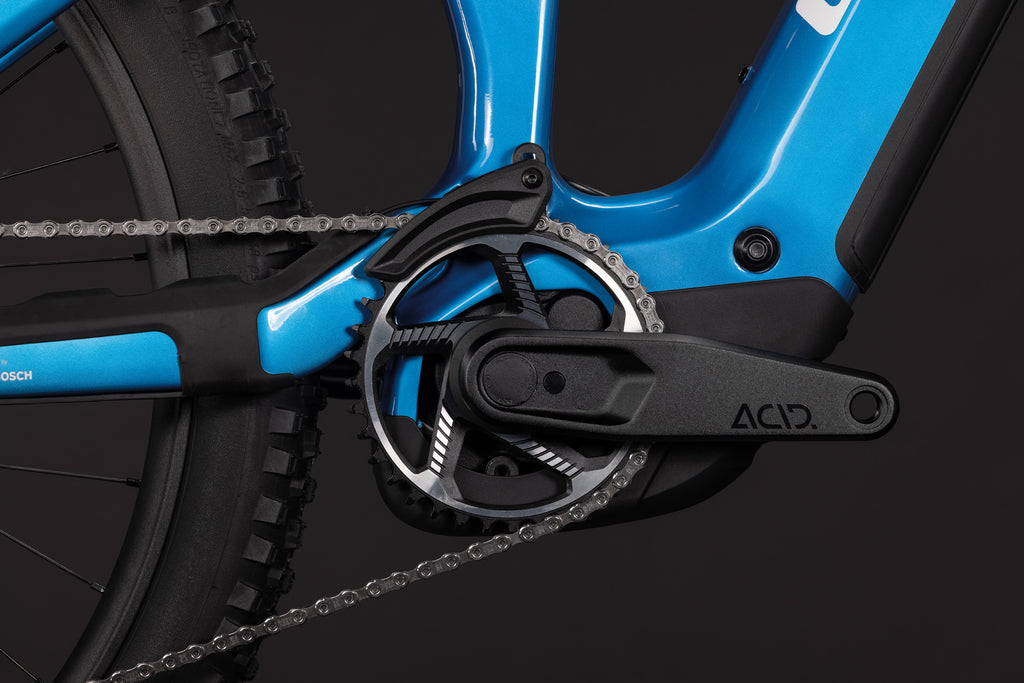

guarnitura ACID MTB Hybrid Pro, 36T
freni Shimano XTR BR-M9220, Hydr. Disc Brake w/ Front ABS (203/203)
cambio Shimano XTR Di2 RD-M9260, 12-Speed, Electronic Shifting System
comandi cambio Shimano XTR Di2 SW-M9250-I, Direct Attach
pacco pignoni Shimano XT CS-M8200, 10-51T
catena Shimano XT CN-M8100
guidacatena Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
serie sterzo Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Attacco Manubrio CUBE Performance Stem E-MTB 35, FPI-Link
manubrio Race Face ERA 35
manopole ACID Endure
Ruote
ruote Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
copertone posteriore Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
copertone anteriore Schwalbe Magic Mary Trail Pro, Addix Soft, Kevlar, 2.5
Dotazione
reggisella Fox Transfer Factory 31.6mm, Kashima Coated
bloccaggio sella CUBE Semi-Integrated
sella ACID Venec EMTB Trail 140
pedali ACID PP MTB
