DESCRIZIONE
Telaio
telaio C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
misura Size Split: 27.5: S // 29: M, L, XL
Sospensione
viteria ammortizzatore Front: 30x8mm, Rear: DU-Bushing 12.7mm

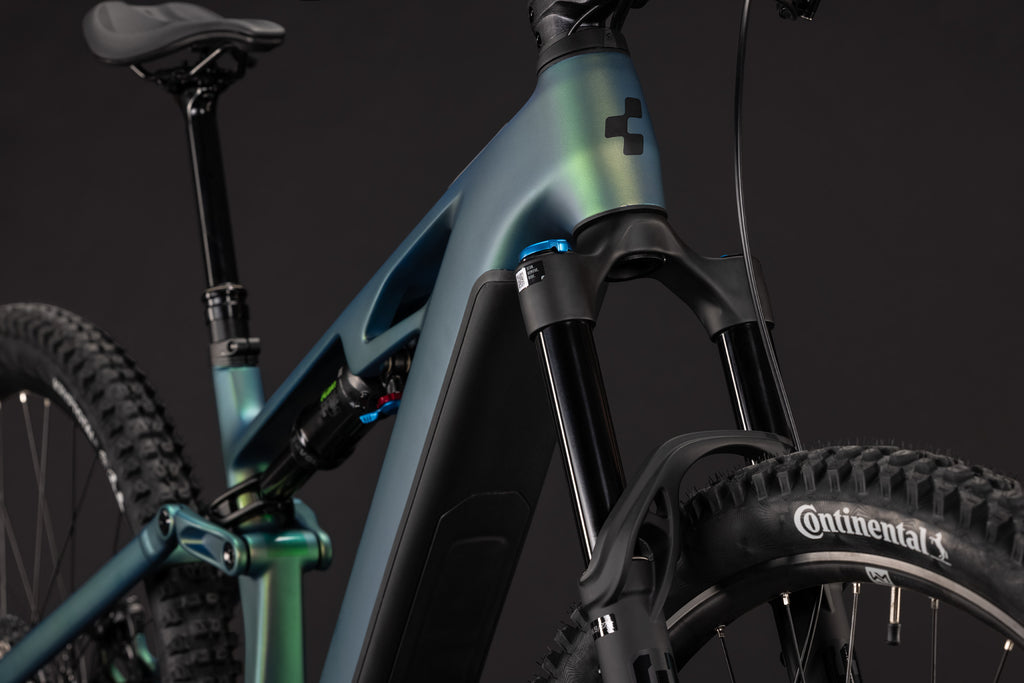

forcella ammortizzata Fox 36 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 150mm

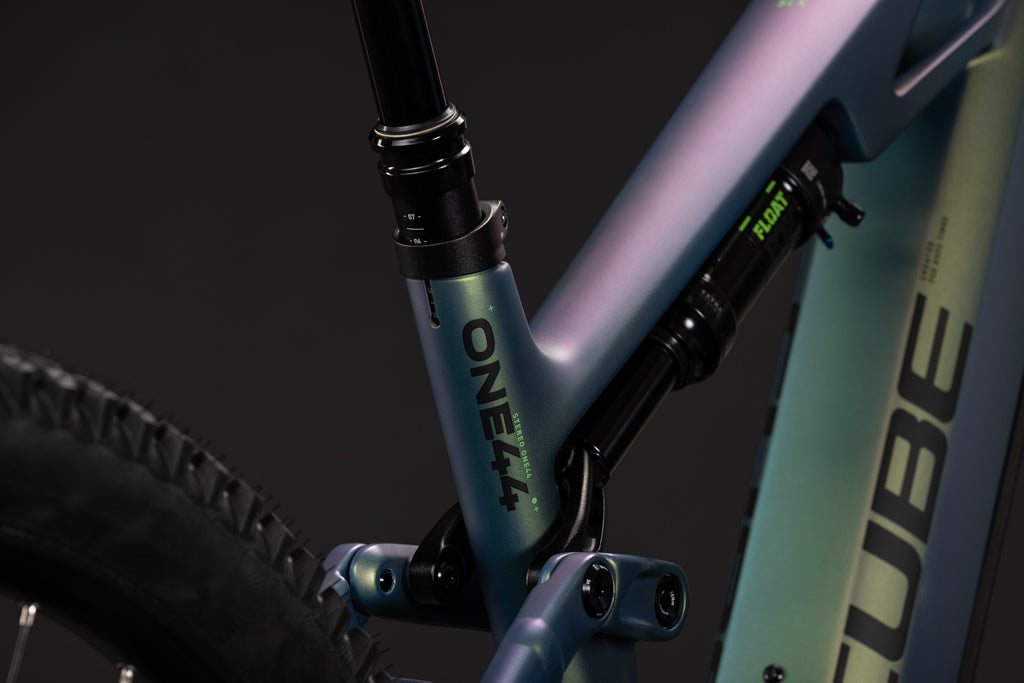

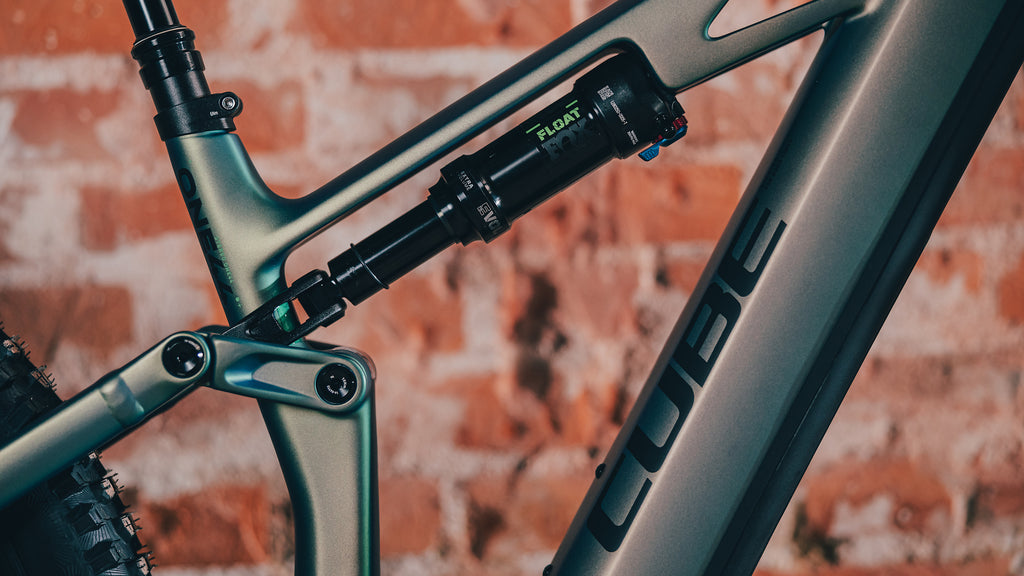

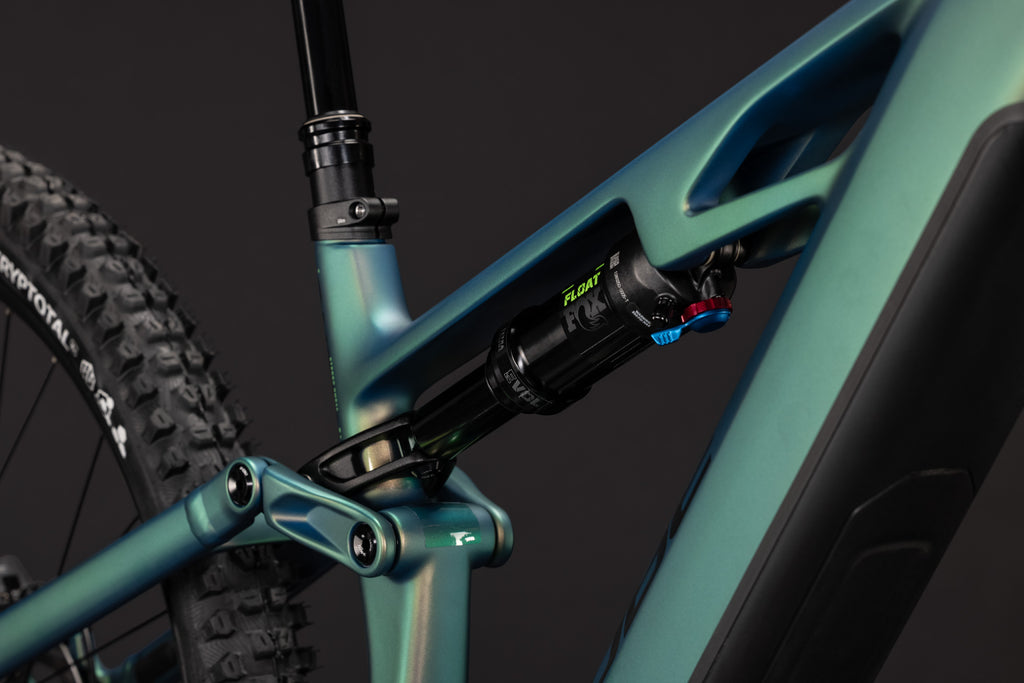

ammortizzatore Fox Float Performance, 230x60mm (27.5: 210x55mm), Adjustable LSR w/ 2-Pos. Lever
Sistema e-bike

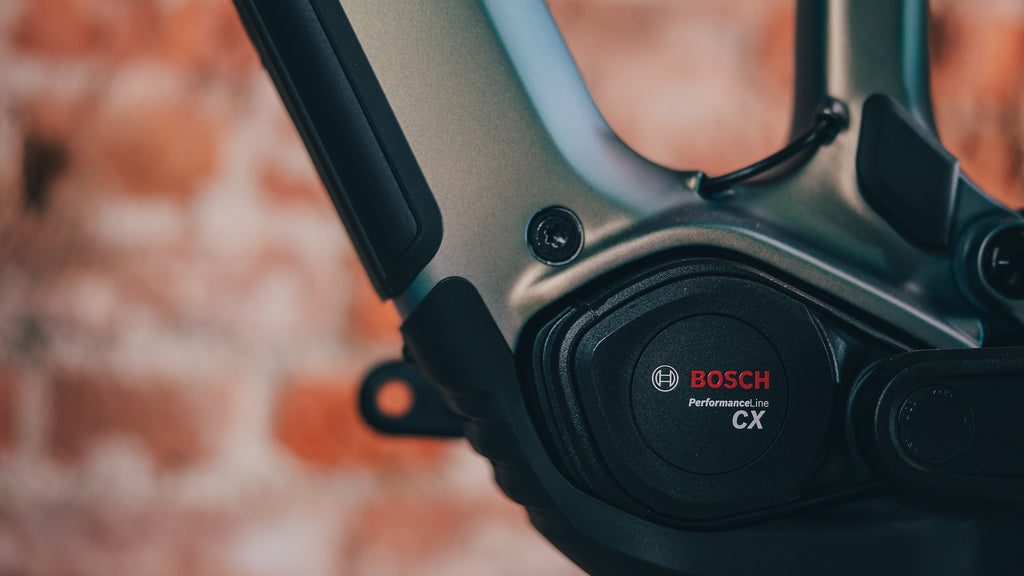

motore Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
Remoto Bosch Mini Remote
batteria Bosch PowerTube 800

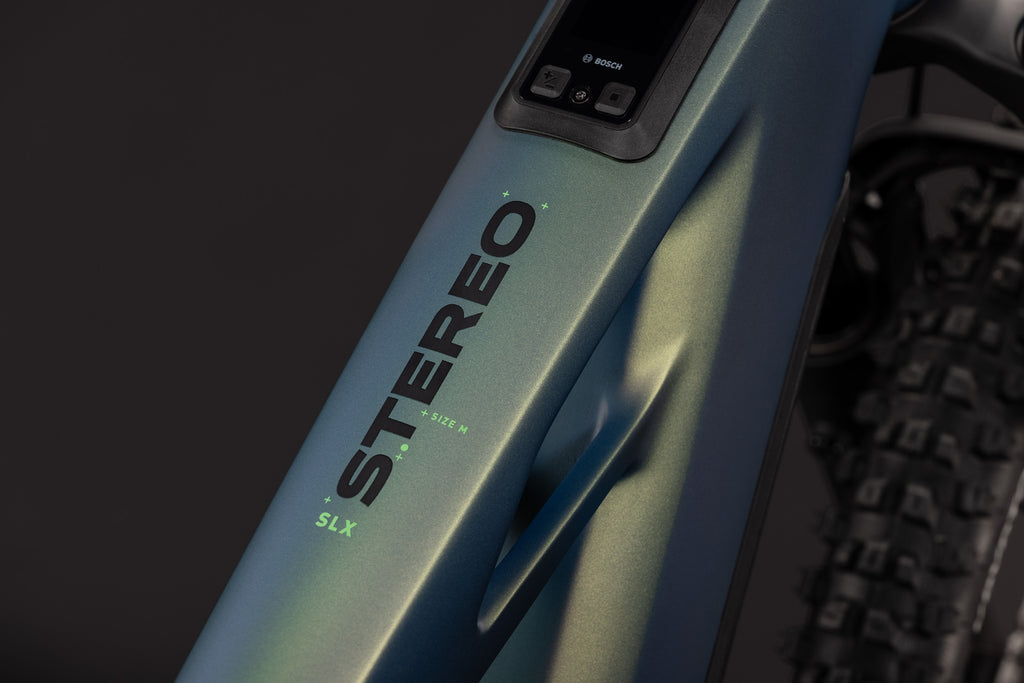

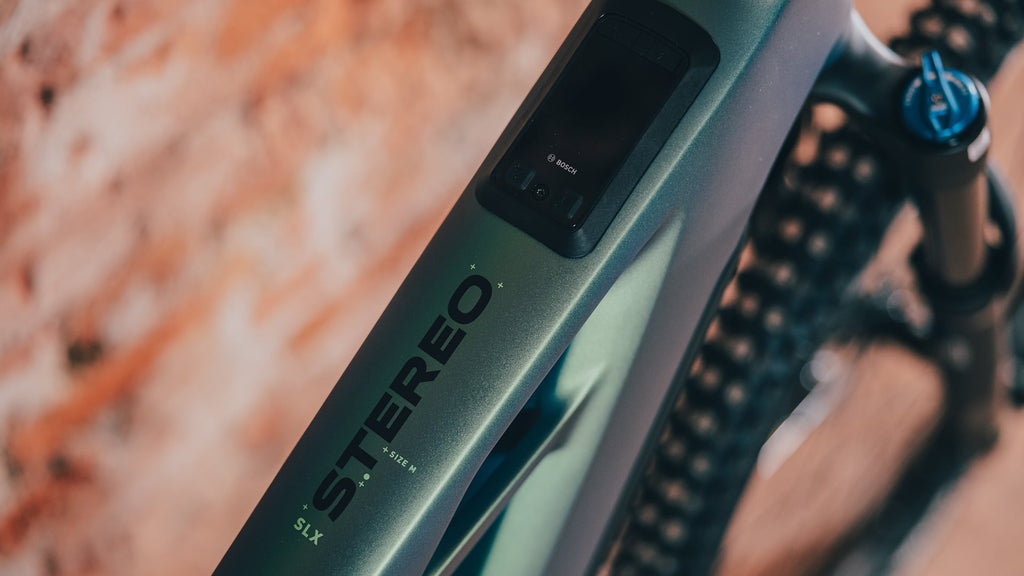

display Bosch Kiox 400C
caricatore Bosch 4A
Trasmissione e freni

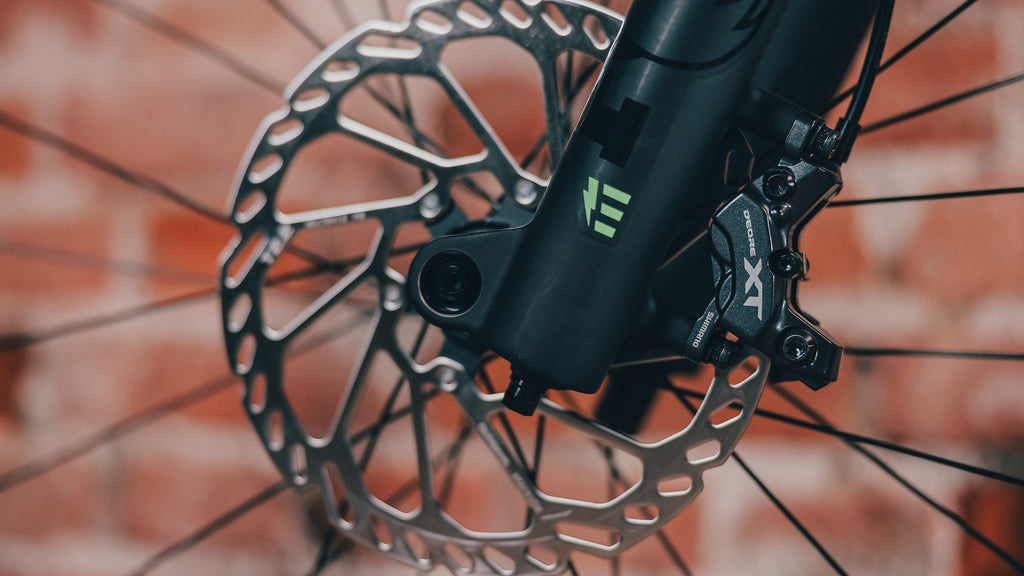

freni Shimano XT BR-M8220, Hydr. Disc Brake (200/200)

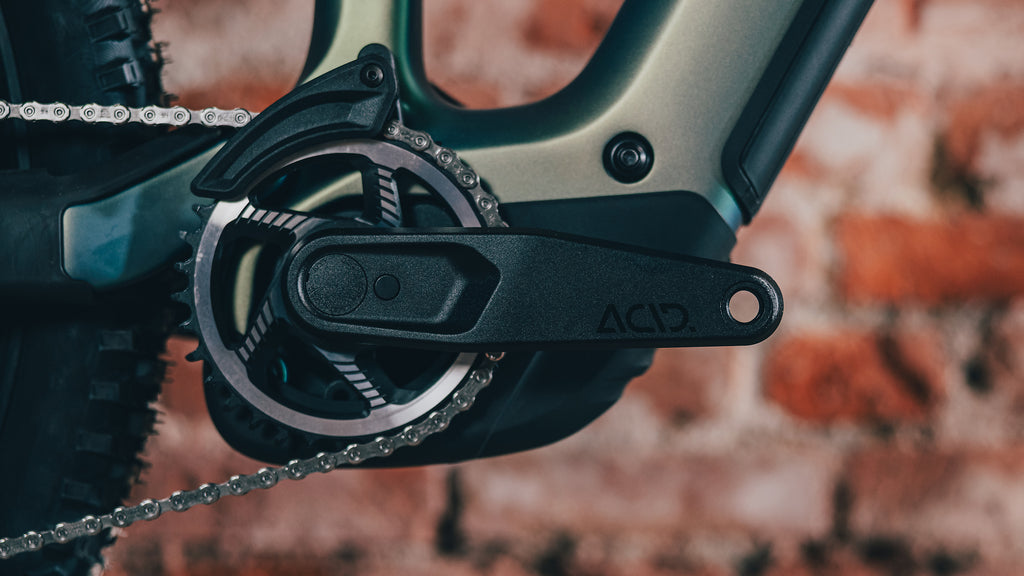

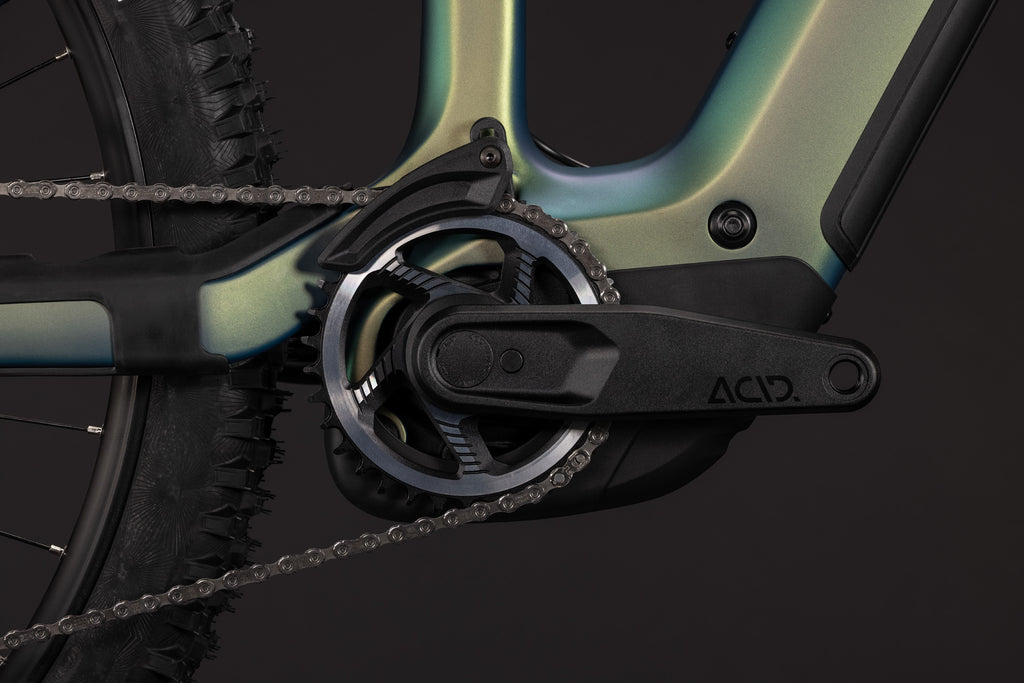

guarnitura ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
cambio Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
comandi cambio Shimano Deore XT SL-M8210-IR, Direct Attach, Single Click
pacco pignoni Shimano XT CS-M8200, 10-51T
catena Shimano CN-M8100
guidacatena Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
serie sterzo Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface

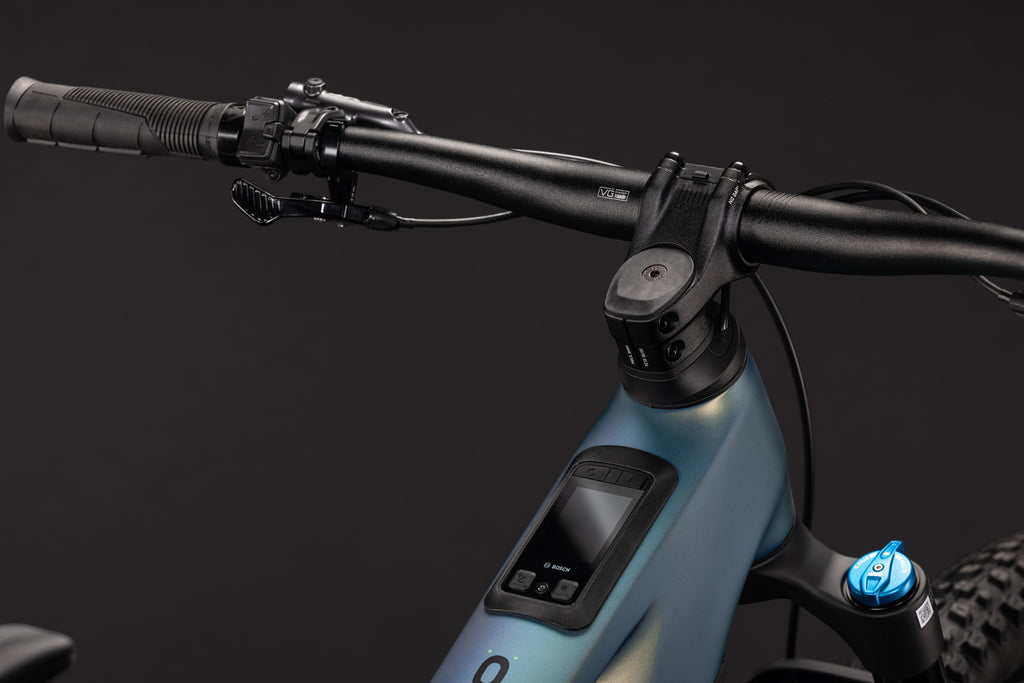

Attacco Manubrio CUBE Performance Stem E-MTB 35, FPI-Link
manubrio CUBE Rise Trail Bar 35 VariGrip System
manopole ACID Endure VariGrip System
Ruote
ruote Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready

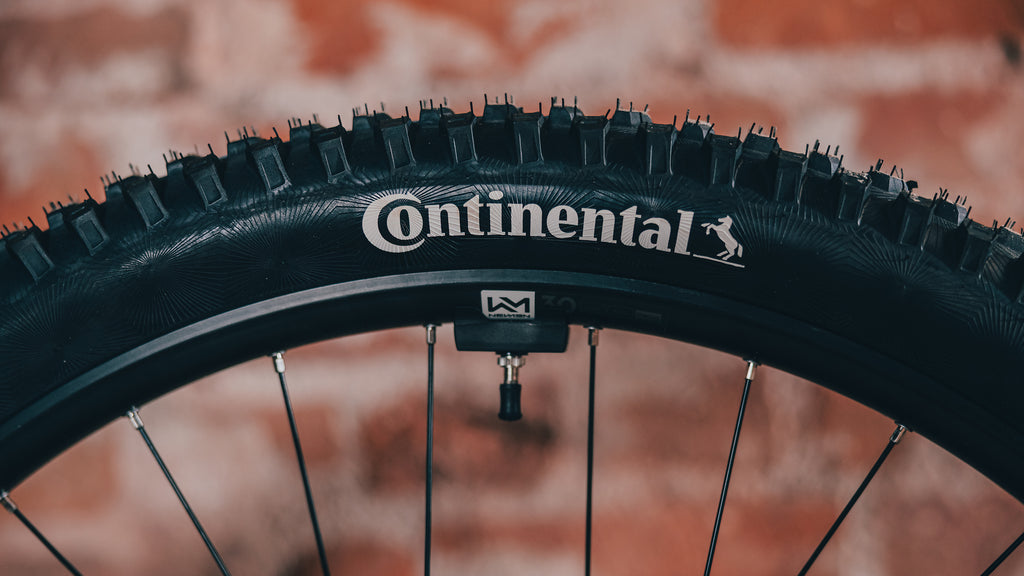

copertone anteriore Conti Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4
copertone posteriore Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
Dotazione
bloccaggio sella CUBE Semi-Integrated
sella ACID Venec EMTB Trail 140
reggisella CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
