DESCRIZIONE
Telaio

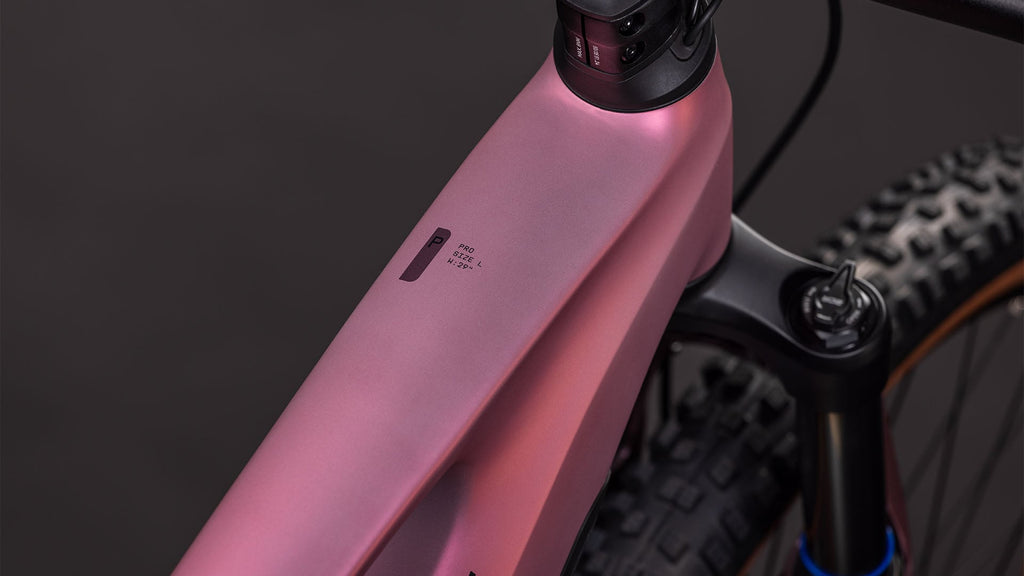

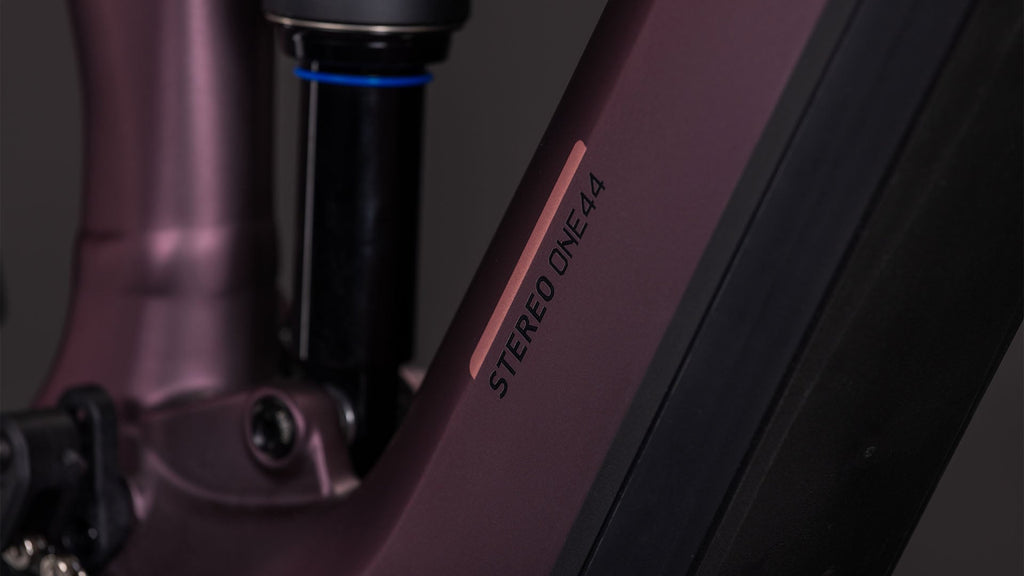

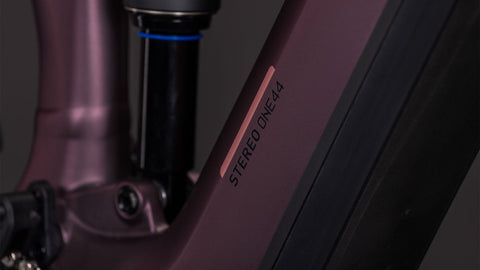

telaio Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
misura Size Split: 27.5: S // 29: M, L, XL
Sospensione
viteria ammortizzatore Top: 54mm Trunnion Mount, Bottom: 22.2x8mm

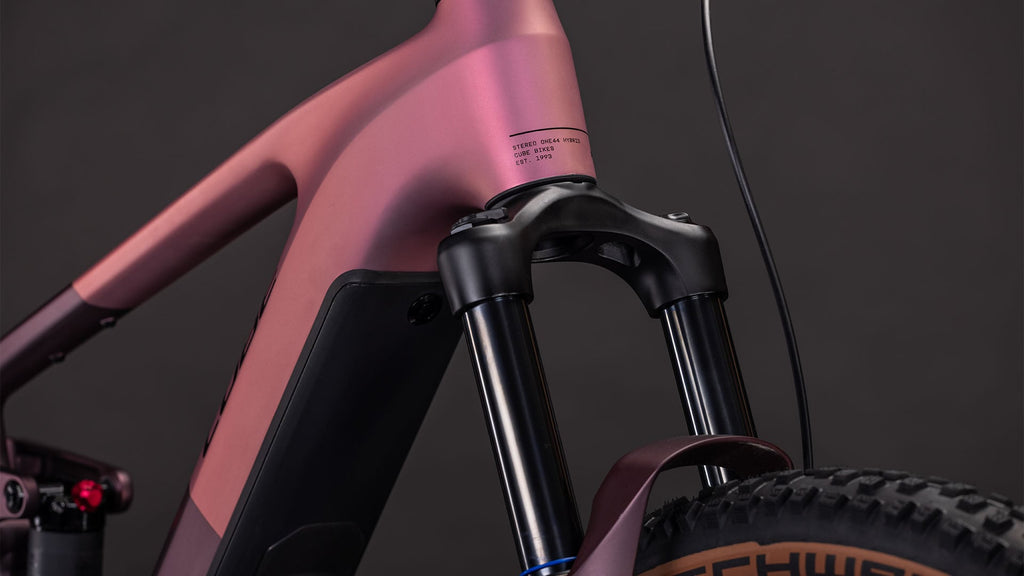

forcella ammortizzata SR Suntour XCR36 2CR Air, Tapered, 15x110mm, 140mm

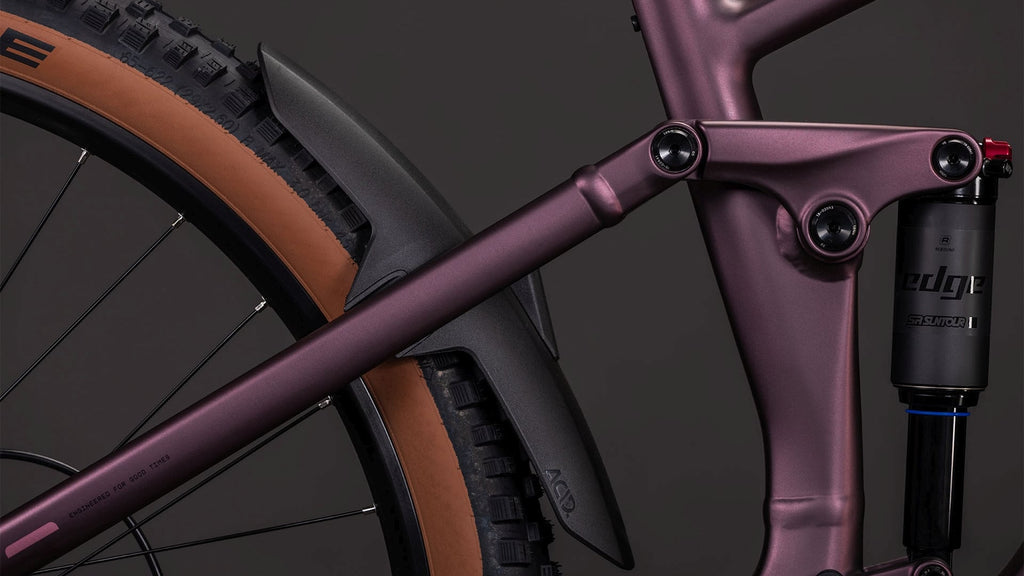

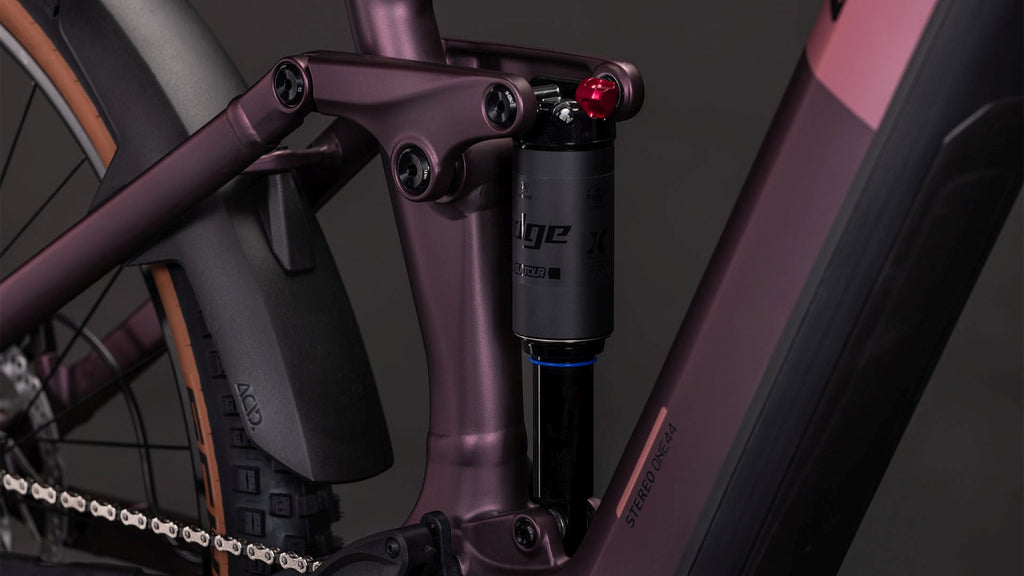

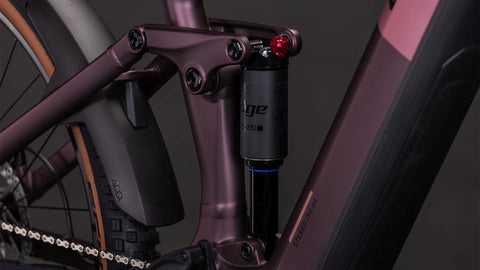

ammortizzatore SR Suntour EdgeX R 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount
Sistema e-bike
motore Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
Remoto Bosch Purion 200 with Integrated Display
batteria Bosch PowerTube 800
caricatore Bosch 2A
Trasmissione e freni
freni Shimano BR-MT420, Hydr. Disc Brake (203/203)
cambio Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
comandi cambio Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

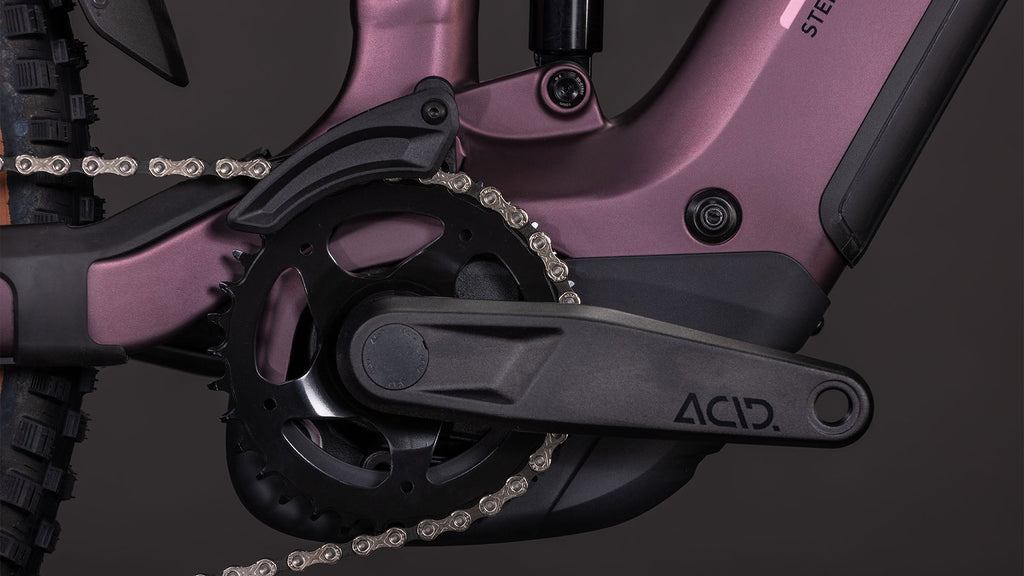

guarnitura ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
pacco pignoni Shimano Deore CS-M6100, 10-51T
catena KMC e12
guidacatena Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
serie sterzo ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
Attacco Manubrio CUBE Performance Stem E-MTB 35, FPI-Link
manubrio CUBE Rise Trail Bar 35
manopole ACID Hybrid Perform
Ruote
ruote ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
copertoni Schwalbe Nobby Nic, Performance, 2.6
Dotazione
sella ACID Venec EMTB Plus 145
reggisella CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
pedali ACID PP MTB
Informazioni articolo
peso 26,8 kg
