DESCRIZIONE
peso 24,2 kg
serie sterzo ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
viteria ammortizzatore Front: 30x8mm, Rear: DU-Bushing 12.7mm
Peso massimo di carico del sistema 160 kg
Massimo peso di ciclista 125 kg
telaio C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
misura Size Split: 27.5: S // 29: M, L, XL

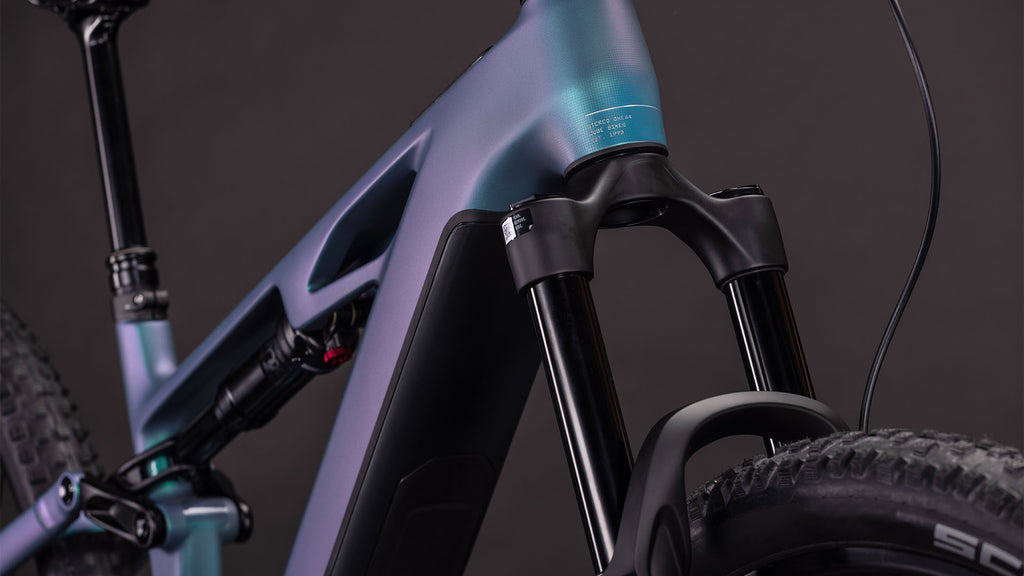

forcella ammortizzata Fox 36 Float AWL HD Sport RAIL 2.0 R, Tapered, 15x110mm, E-Bike Optimized, 150mm
motore Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Remoto Bosch System Control, incl. Mini Remote
batteria Bosch PowerTube 800

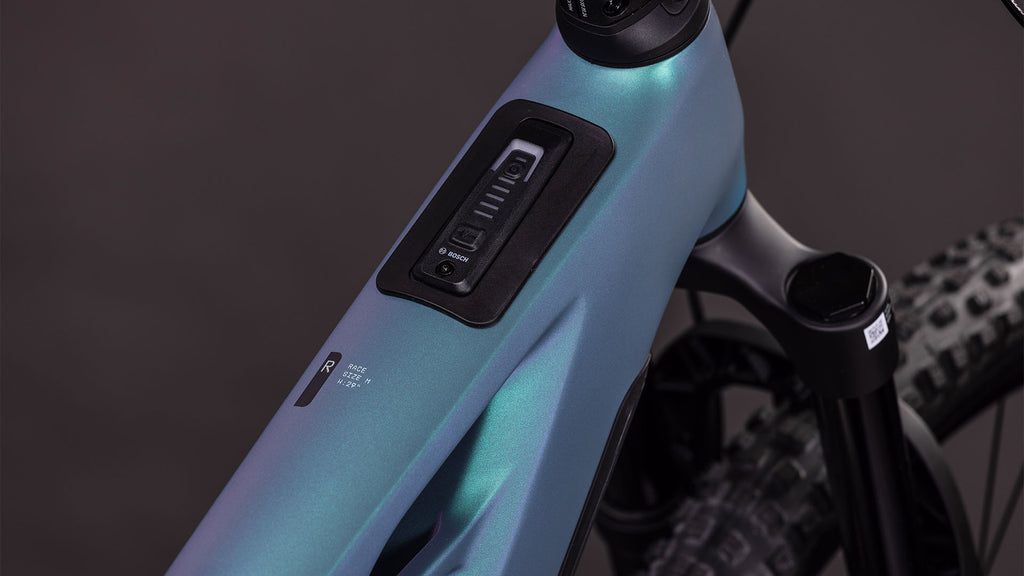

display Bosch Purion 400
caricatore Bosch 2A

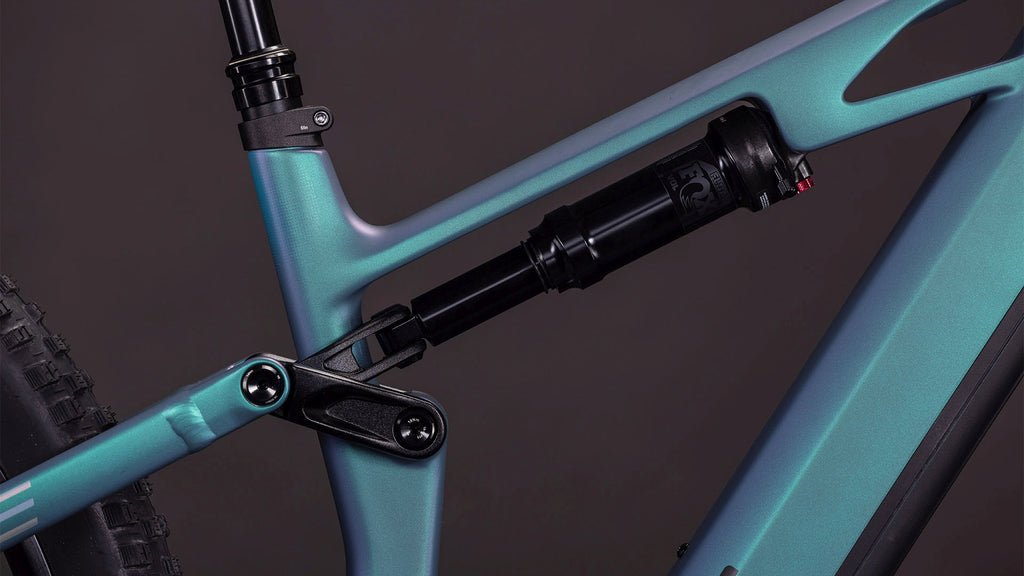

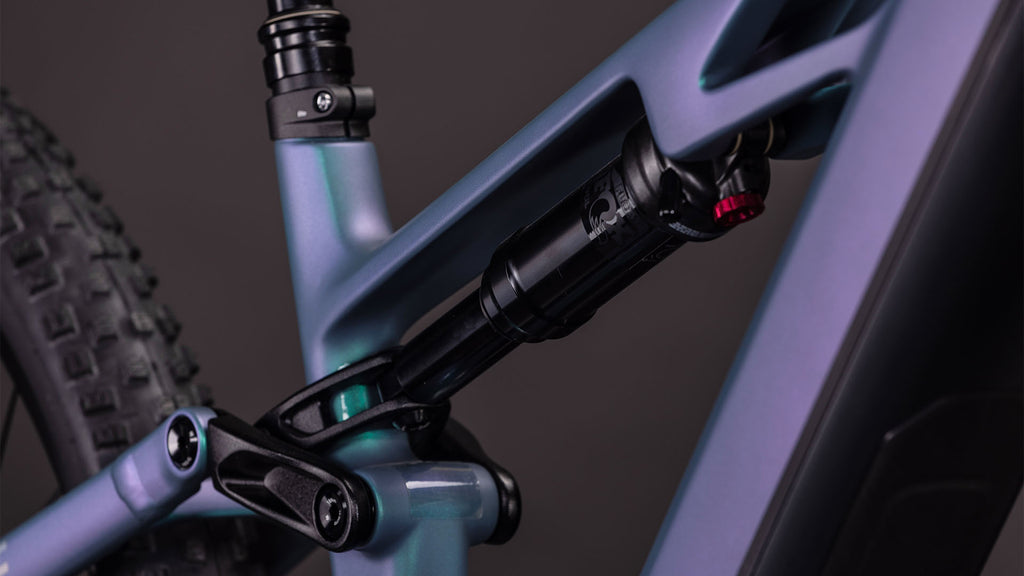

ammortizzatore Fox Float Rhythm R, 230x60mm (27.5: 210x55mm), Adjustable LSR
freni Shimano BR-MT420, Hydr. Disc Brake (203/203)
cambio Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
comandi cambio Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

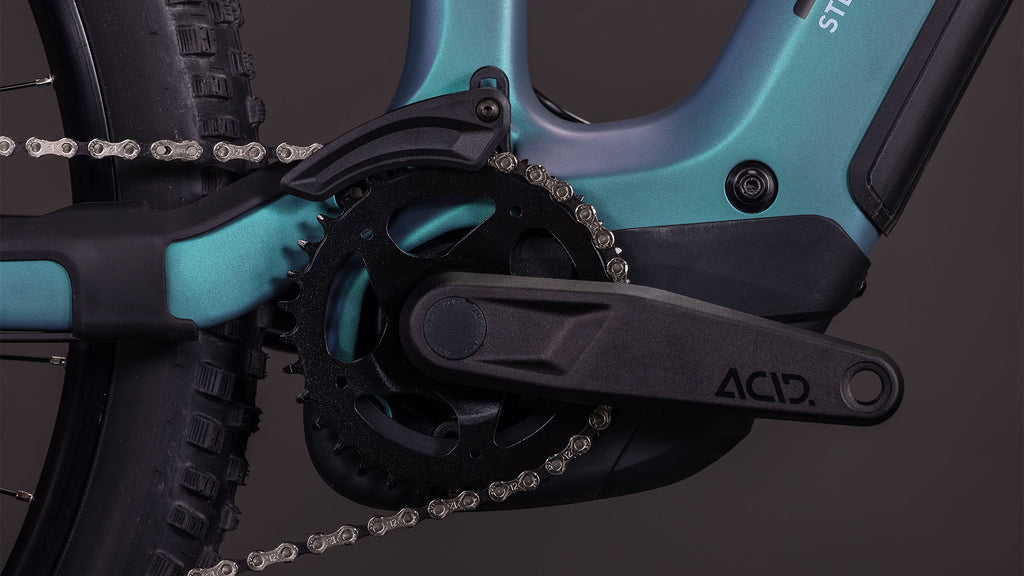

guarnitura ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
pacco pignoni Shimano Deore CS-M6100, 10-51T
catena KMC e12
guidacatena Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Attacco Manubrio CUBE Performance Stem E-MTB 35, FPI-Link
manubrio CUBE Rise Trail Bar 35
manopole ACID Disrupt
ruote ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
copertoni Schwalbe Nobby Nic, Performance, 2.6
sella ACID Venec EMTB Trail 140
reggisella CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
bloccaggio sella CUBE Semi-Integrated
pedali ACID PP MTB
colore smaragdgrey´n´prism
