DESCRIZIONE
serie sterzo ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
parafanghi ACID 65
viteria ammortizzatore Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
Peso massimo di carico del sistema 150 kg
Massimo peso di ciclista 120 kg

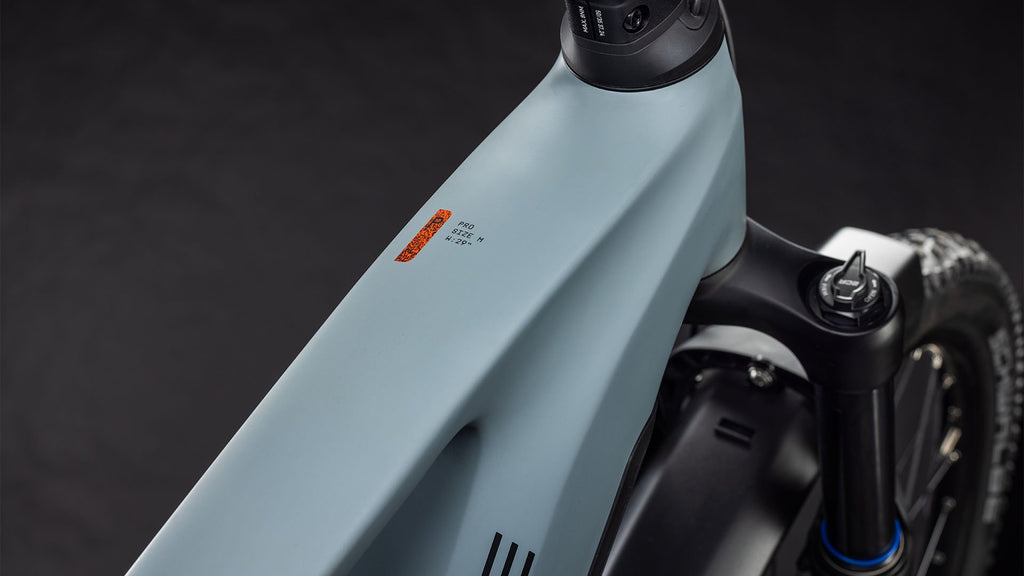

telaio Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
misura Size Split: 27.5: S // 29: M, L, XL
forcella ammortizzata SR Suntour XCR36 2CR Air, Tapered, 15x110mm, 140mm
motore Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Remoto Bosch Purion 200 with Integrated Display
batteria Bosch PowerTube 800
caricatore Bosch 2A

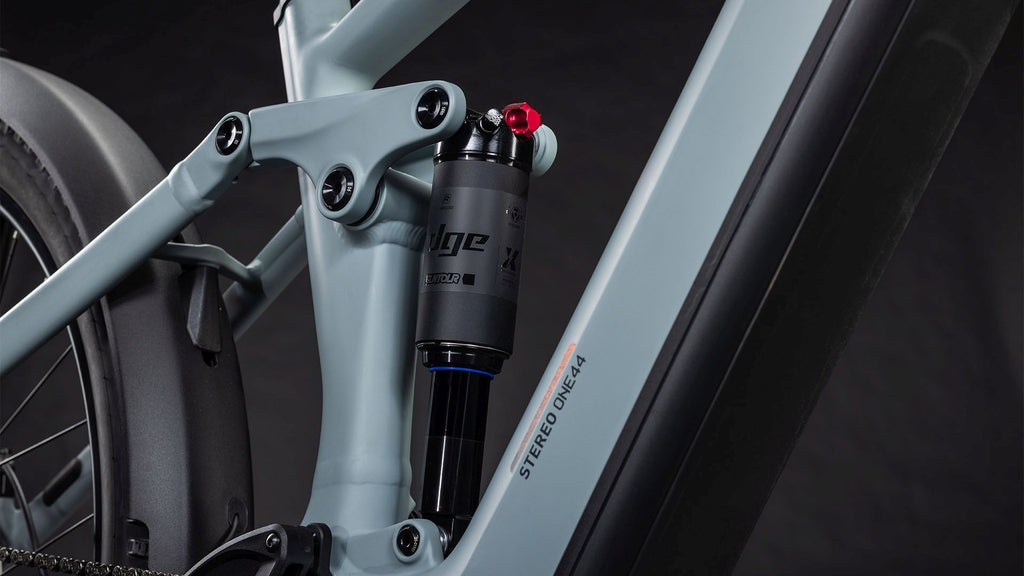

ammortizzatore SR Suntour EdgeX R 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount
freni Shimano BR-MT420, Hydr. Disc Brake (203/203)
cambio Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
comandi cambio Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
guarnitura ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
pacco pignoni Shimano Deore CS-M6100, 10-51T
catena KMC e12
guidacatena Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

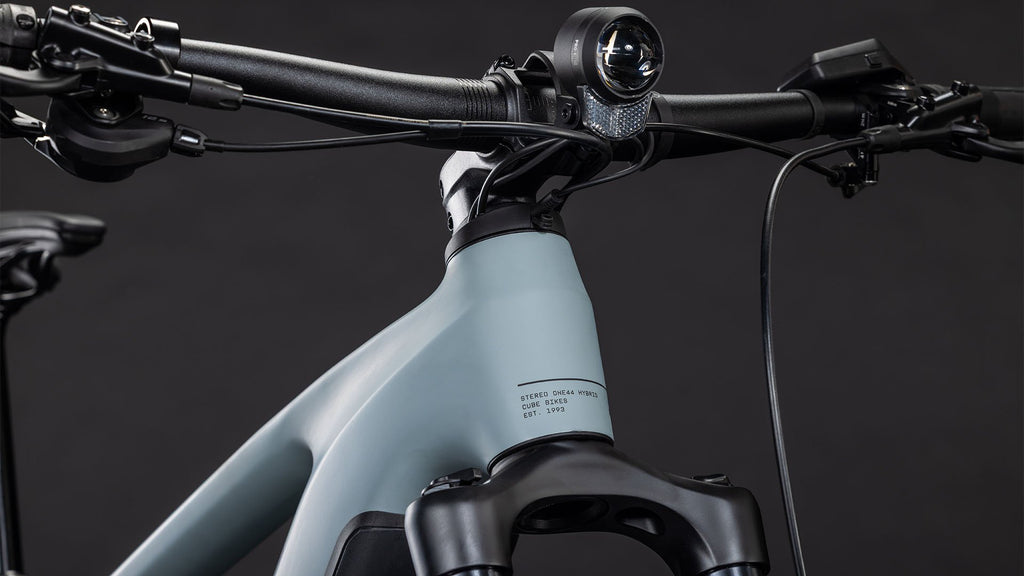

Attacco Manubrio CUBE Performance Stem E-MTB 35, FPI-Link
manubrio CUBE Rise Trail Bar 35
manopole ACID Hybrid Perform
ruote ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
copertoni Schwalbe Nobby Nic, Performance, 2.6
sella ACID Venec EMTB Plus 145
reggisella CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
pedali ACID PP MTB
fanale anteriore ACID Front Light PRO-E 150 X-Connect, 12V, DC
fanale posteriore ACID Mudguard Rear Light PRO-E, 12V, DC
cavalletto ACID FM Pure Kickstand
campanello Knog Oi

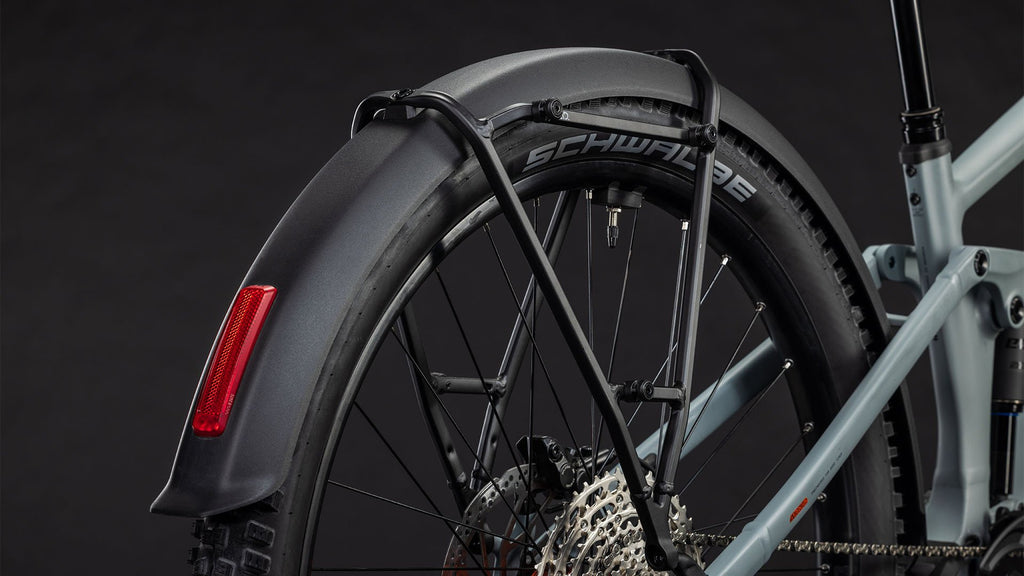

portapacchi ACID Carrier SIC 2.0 Rail Boost
